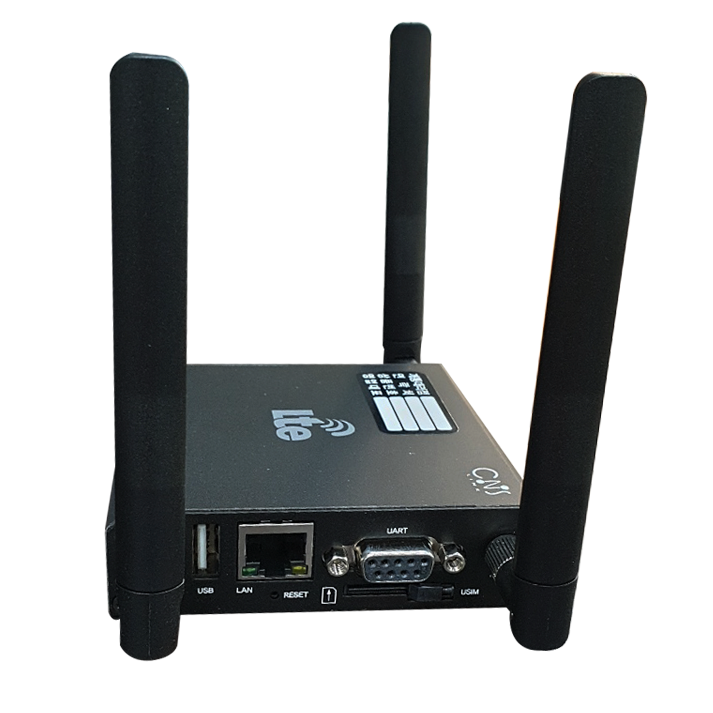

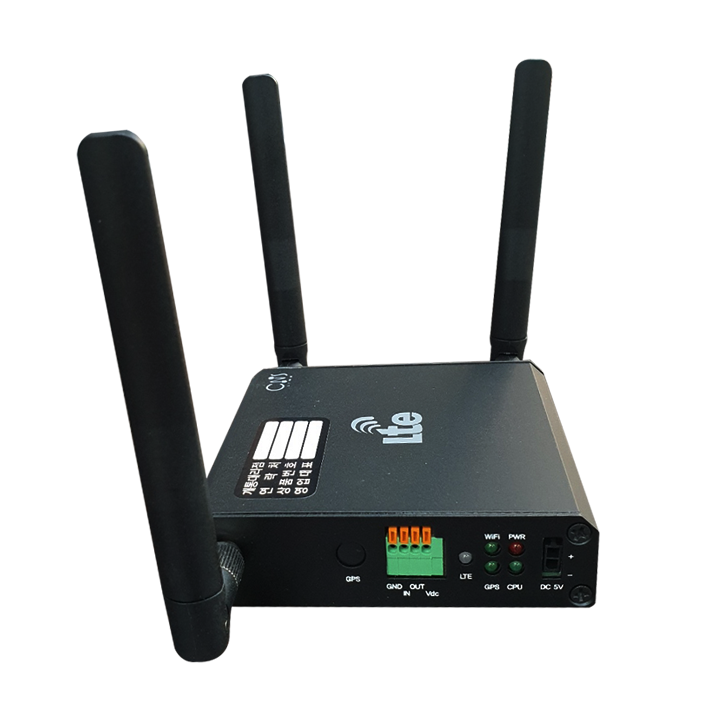

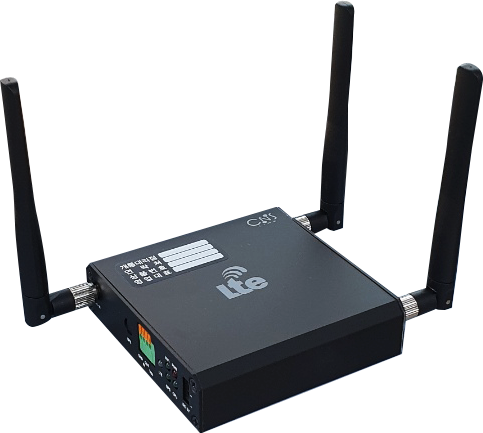

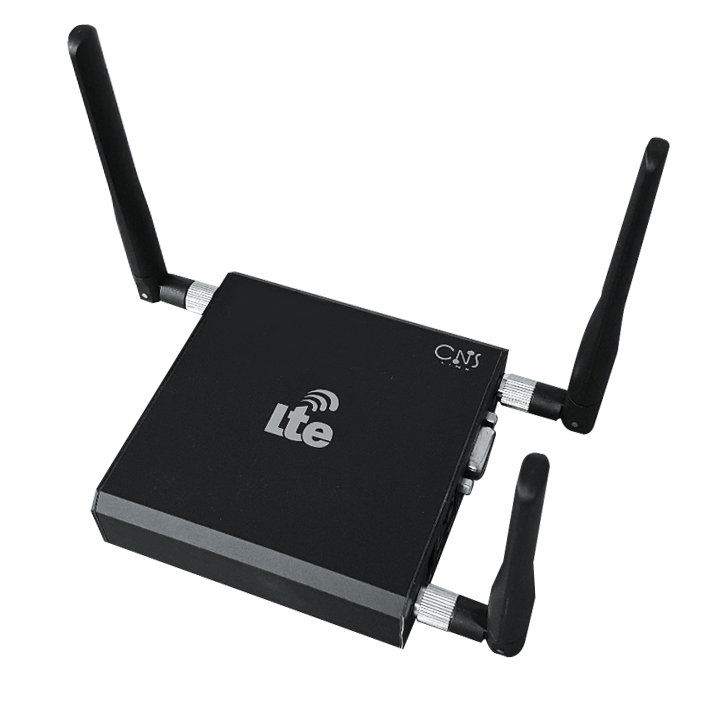

CNR-L300W
온도 습도에 강한 산업용 라우터
※ MOF 고객에 한하여 단말기 무상 지원가능
| CNR-L300W | ||
| 구분 | Description | |
| 적용칩셋 | 페가수스 WDLX-LU20xx-F (Module) | LTE Release 9 Category 4 850MHz(Band5) / 2.6GHz(Band7) Dual Band GCT GDM7243S Engine |
| GPS | Ubx-7020KT | Ublox 7(8) with Autonomous |
| CPU Part | CPU | RT3352(Ralink) |
| Flash Memory | 8Mbyte Serial Flash | |
| RAM | 128MB DDR2 SDRAM | |
| OS | Linux 2.6.21 | |
| indicator | Ethernet Wireless Switch | 1-Port Ethernet Switch, (RJ45 Ethernet/IP) , Port Extension Option |
| GPS | Ublox7, SMA Connector | |
| UART/RS232 | UART/RS232(Dip-sub 9-pin)/TTL(Option), Modem Debug | |
| GPIO(2-Port) | IN/OUT Terminal Block | |
| SIM | USIM PUSH-PUSH LOCKING Type | |
| 4-LED/2-Ethernet LED | Power, CPU States, SIO, GPS, LTE, Ethernet LED | |
| Power | Power input | 5VDC/2A Adaptor or 12~36VDC 차량용 시거 Type |
| Data Speed | Data Transfer Rate | 150Mbps DL / 50Mbps UL (Idle) |
| Web server | IP & APN Setting | LTE Network Condition Check & IP Setting |
| Function | Internet & M2M Service | DDNS, Port Forwarding, DMZ, Firewall, IP/Port Filtering, 공인 IP, Wifi AP DMNS, DHCP server, NAT, UPnP se rver, VPN Pass through, Secuway SSL VPN MAC에 고정 IP 할당 기능 |
| Specifications | Mechanical | Dimensions: 94(W) x 92(L) x 25(T) mm, Weight: T.B.D |
Environment | Operating Temperature | -20℃ ~ 60℃(연구소 시험결과 -30℃ ~ 80℃ |
| Storage Temperature | 30℃ ~ 70℃ | |
| Humidity | 5% ~ 85% (non-condensing) | |
Configurations | Standard Packing | LTE Router, Car Adaptor, Ethernet Cable, Manual, Antenna(LTE), bolt |
| Option | GPS Antenna | |
